Compact Pressure Testing for Fire Hoses!
The SDP bridges the gap between hose-washing machines and mobile hose reels. It enables the simultaneous pressure testing of up to two fire hoses in sizes 75mm / 45mm / 25mm, or one each of sizes 150mm/ 110mm —safely, portably, and in compliance with regulations.

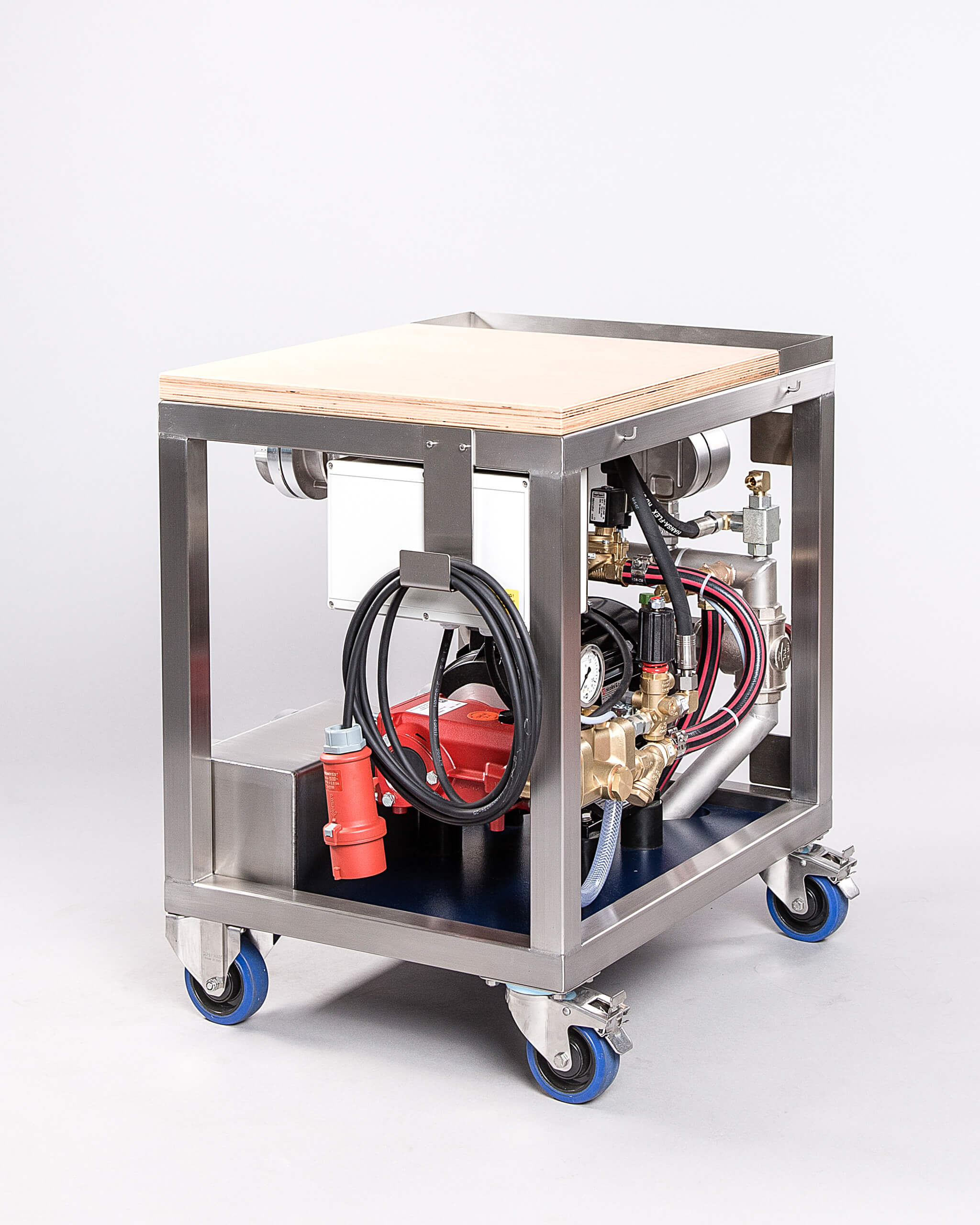

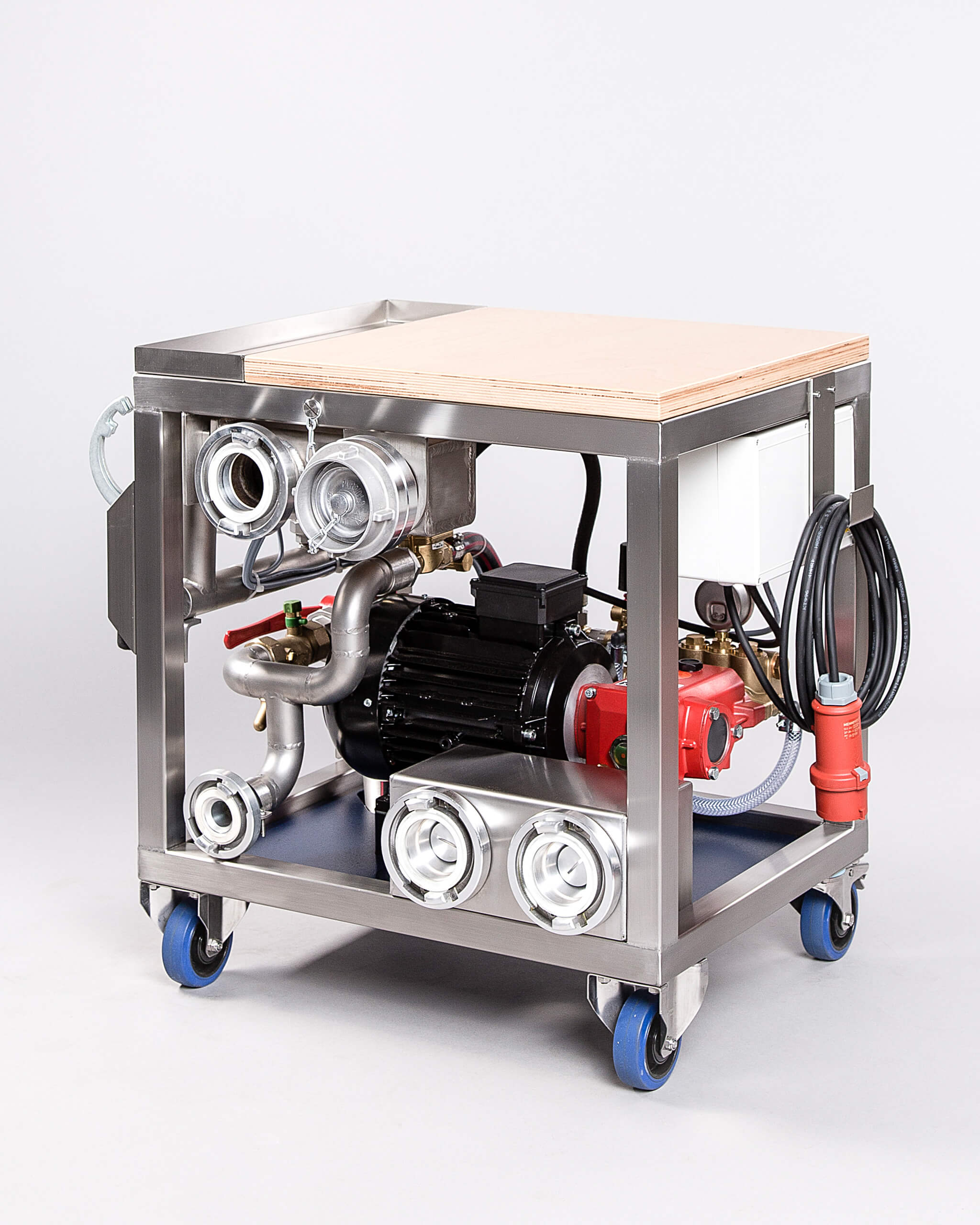

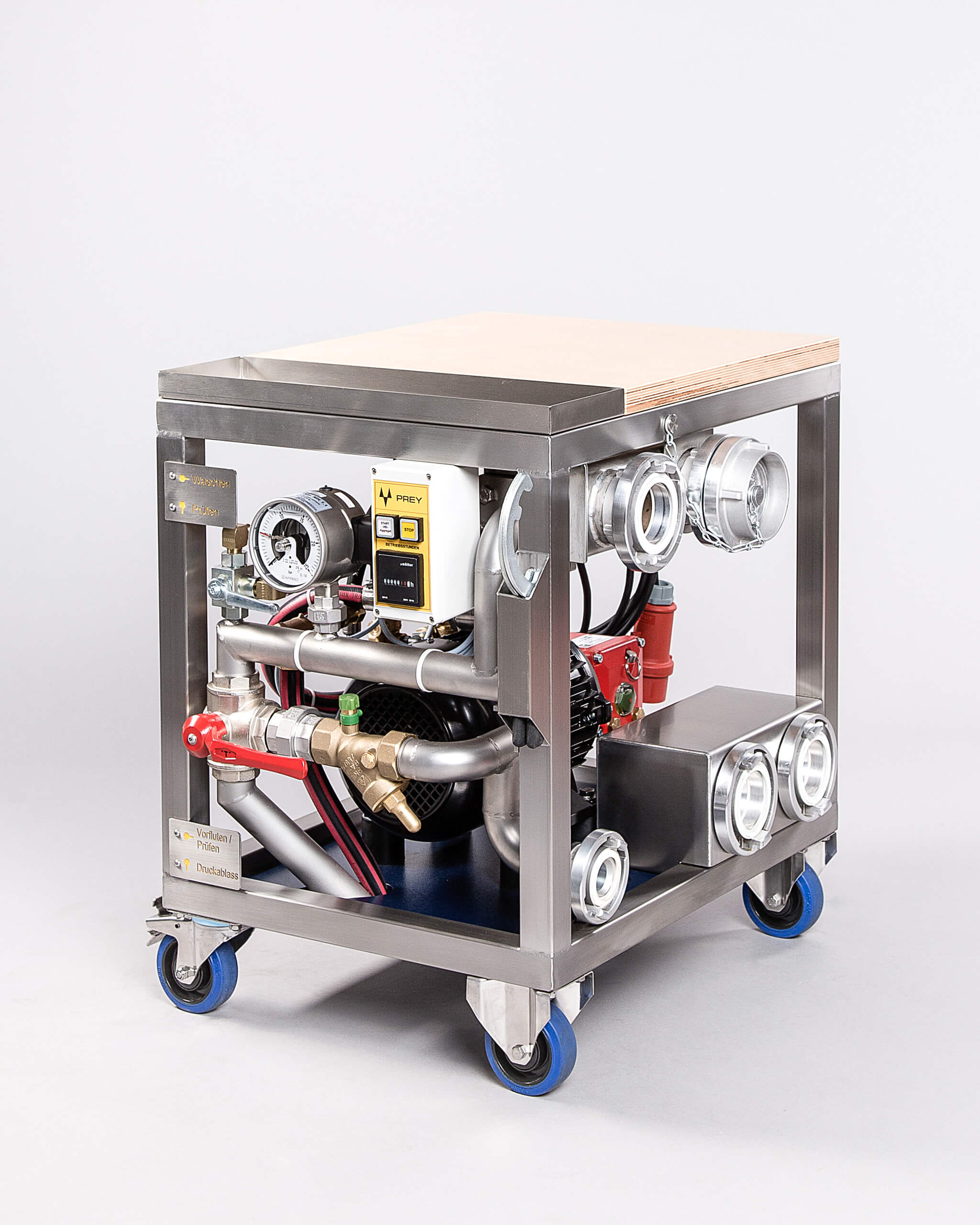

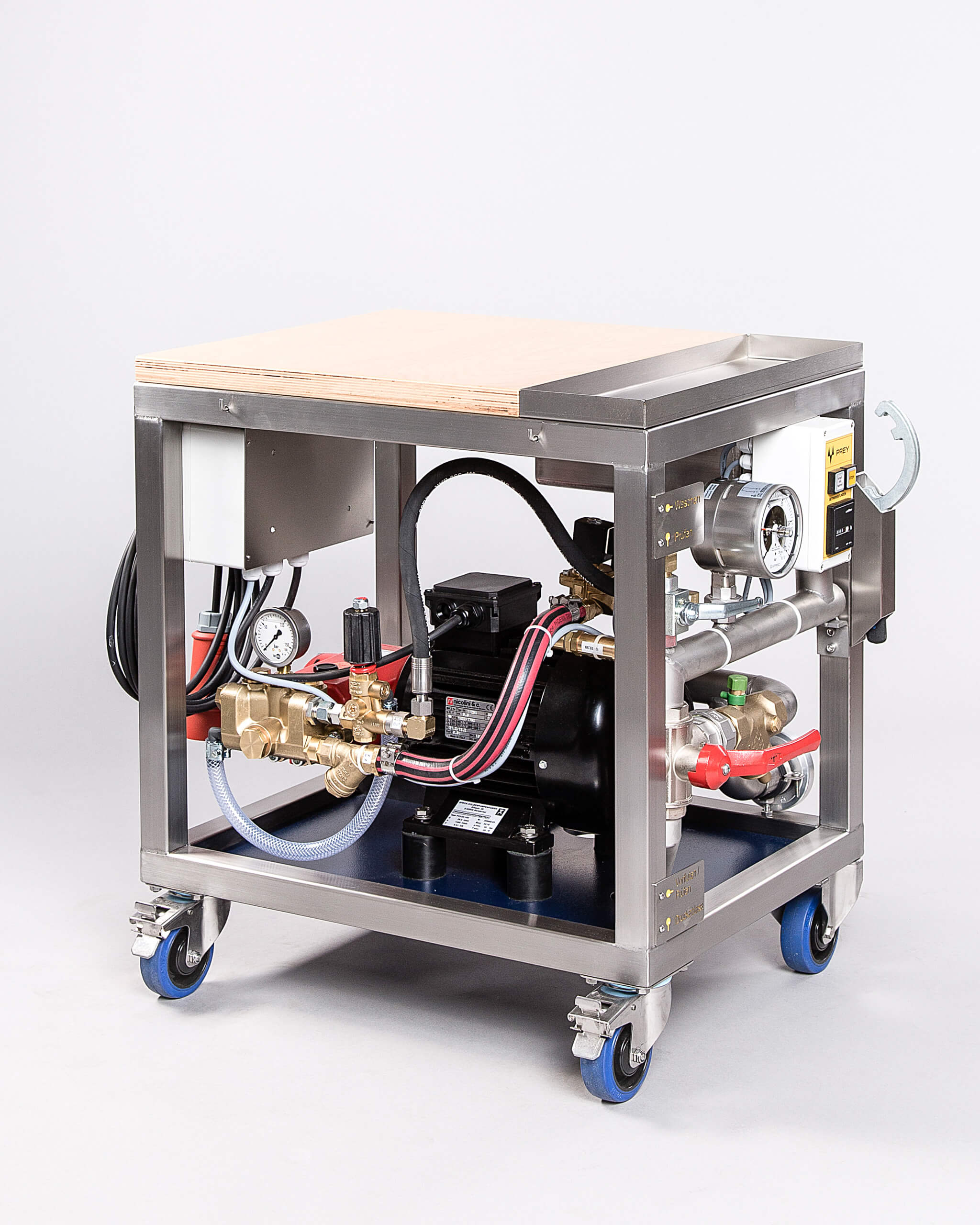

The robust stainless steel frame with integrated test-end locks ensures maximum safety and durability. All coupling ends are securely attached to the device, to reliably protect both the operator and the surrounding area.
The 50-mm-thick beech wood panel serves as a practical work surface, while smooth-rolling stainless steel casters with locking brakes ensure comfortable and quiet transport.
Like all of our devices, the SDP is designed for maximum durability and flexible compatibility with existing— ideal for fire departments that have previously conducted tests using portable pumps.
| Width | 580 mm |
| Length | 740 mm |
| Height | 800 mm |
| Weight | 120 kg |
| Mains water connection | 2″ |
| Power Connection | 400 V AC / 50 Hz / 5.5 kW / 16 A |
| Testing Connection | 2 x 75mm |
| Test pressure | 0–16 bar |
| Hose Sizes | 1x 150mm/ 2x 110mm / 2x 75mm / 2x 45mm / 2x 25mm |
| Hose lengths | unlimited |
| Types of Hoses | All Common Materials |
| Functions | Pressure Testing |
| Safety Features |
Automatic test pressure shut-off (adjustable) Safety relief valve |
| Operating Mode | One-person operation |
| Test Unit | Automatic mode |
| Installation Type | mobile |
| Combination with | all other individual hose care devices |
| Standard Equipment |
Coupling Impact Protection Blind Coupling Cable Holder Heavy-Duty Steering and Support Casters Parking Brakes |
| Optional Accessories |
Test caps Coupling adapters Coupling wrenches High-pressure spray lance |
